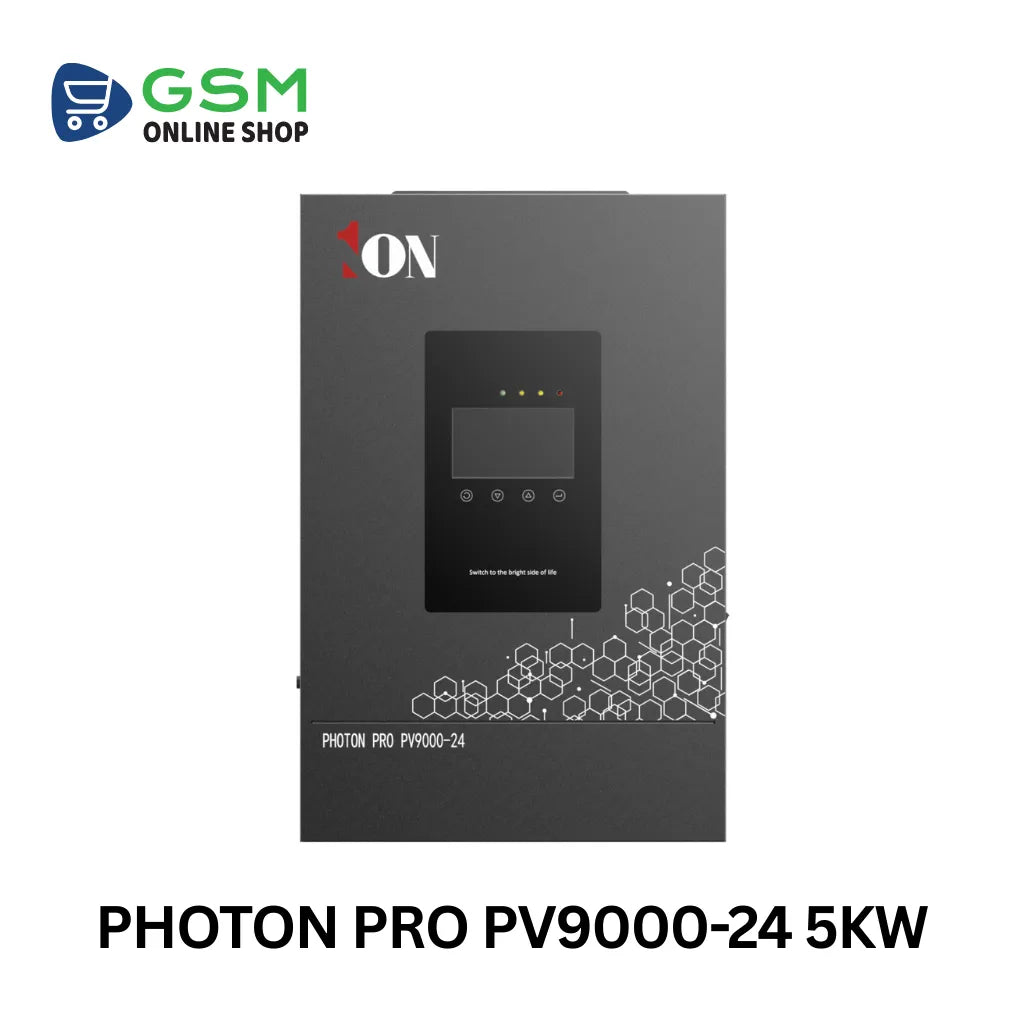

1ON PHOTON PRO PV9000-24 5KW Hybrid Inverter
1ON PHOTON PRO PV9000-24 5KW Hybrid Inverter
Regular price
Rs.118,000.00
Regular price
Rs.125,000.00
Sale price
Rs.118,000.00
Shipping calculated at checkout.
Quantity
Couldn't load pickup availability
The Photon Pro PV9000-24 5KW Hybrid Inverter is an advanced solar energy solution designed to meet the power needs of both residential and small commercial setups. With a rated output of 5KW and a 24V DC input, it efficiently converts solar energy into usable electricity. The inverter features a wide MPPT voltage range, ensuring optimal energy harvesting from solar panels. Its hybrid functionality allows seamless integration with solar panels, batteries, and the grid, providing an uninterrupted power.
| Parameter | Value |
| Rated Capacity | 6250 VA / 5000 W |
| PV Input | Â |
| PV Maximum Input Power | 9000 W |
| Max. PV Open Circuit Voltage | 500 VDC |
| MPPT Range Operating Voltage | 40 – 450 VDC |
| Max. Solar Input Current | 28 A |
| Battery Specifications | Â |
| Battery Type | Lithium and Lead-acid |
| Nominal Battery Voltage | 24 V (2*12 V) |
| AC Input | Â |
| Nominal Voltage (AC Input) | 208 / 220 / 230 / 240; L + N + PE |
| Voltage Range (AC Input) | 90 – 280 ±3 (normal mode); 170 – 280 ±3 (UPS mode) |
| Frequency (AC Input) | 50 / 60 Hz (Auto Adaptive) |
| Rated Capacity (AC Output) | 6250 VA / 5000 W |
| Second Output Capacity | 4150 VA / 4150 W |
| Surge Power | 15000 VA |
| Parallel | / |
| Waveform | Pure Sine Wave |
| Nominal Voltage (AC Output) | 208 / 220 / 230 / 240 VAC |
| Feed-in Grid Voltage Range | 195 – 253 VAC |
| Nominal Frequency | 50 / 60 Hz |
| Feed-in Grid Frequency Range | 49 ~ 51 Hz ±0.7%; 59 ~ 61 ±0.1% |
| Transfer Time | 10 ms UPS mode / 10 ms Appliance mode |
| Peak Efficiency (PV to INV) | 96.00% |
| Peak Efficiency (Battery to INV) | 92.50% |
| Overload Protection | 1min@102%<Load ≤110% 10s@110%<Load ≤130% 3s@130%<Load ≤150% 200ms>Load>150% |
| Admissible Power Factor | -0.8~+0.8 |
|
Charger Specifications
 (solar Charger & AC Charger) |
 |
| Charging Voltage | PV MODE: 27 V, settable: 26.2~27.8 V; CV MODE: 28.2 V, settable: 28~29 V |
| Battery Over Voltage | 30.5 V |
| Charging Current | 2 ~ 160 A |
| Max. AC Charge Current | 160 A |
| Max. PV Charge Current | 160 A |
| Max. Charge Current (PV+AC) | 160 A |
| Physical | Â |
| Built-in Transfer | Yes |
| Built-in Power Booster | Yes |
| Dimensions (D × W × H mm) | 394 × 326 × 110 |
| Net Weight (kg) | 11.5 |
| Communication Interface | RS485 / RS232 / USB / Dry Contact |
| Environment | Â |
| Ingress Protection | IP21 |
| Operating Temperature Range | -10 °C ~ 50 °C |
| Storage Temperature | -15 °C ~ 60 °C |
| Humidity | 5% ~ 95% (Non-condensing) |
