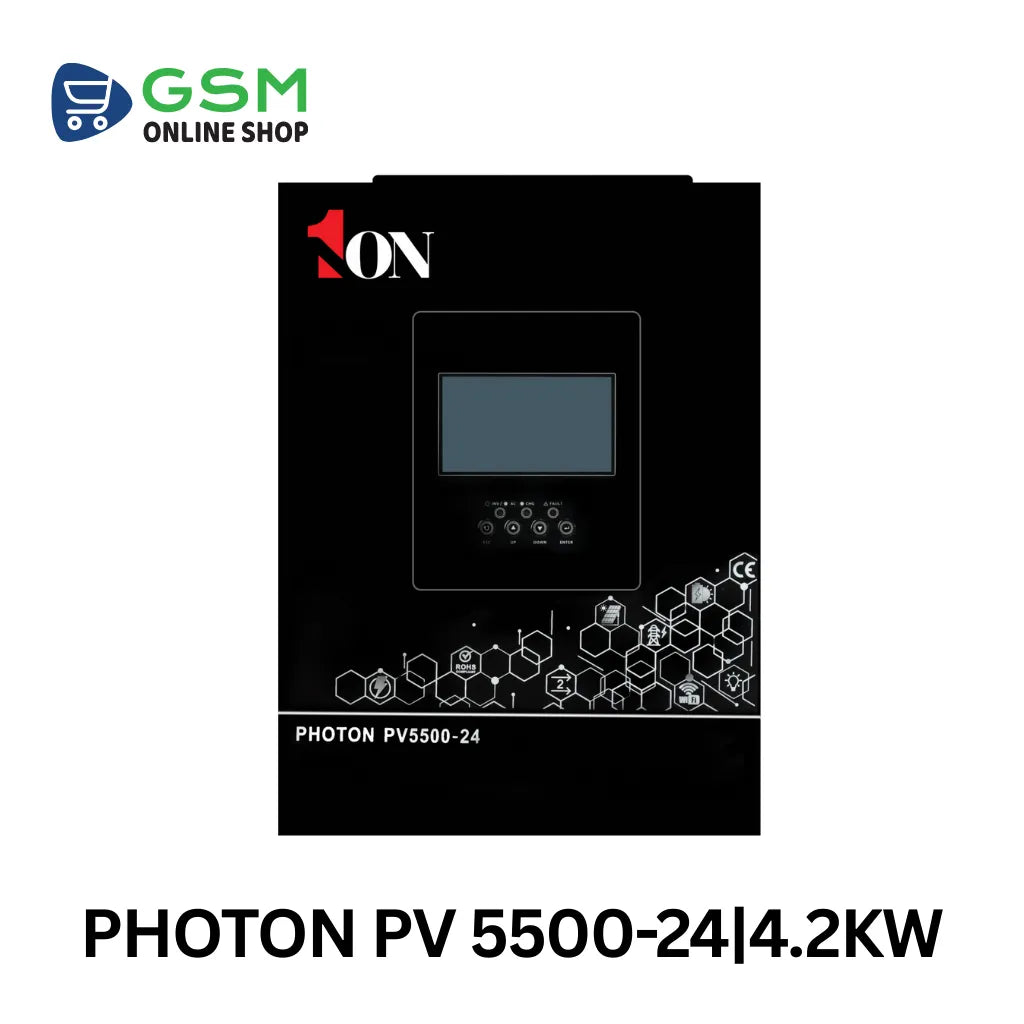

1ON PHOTON PV 5500-24|4.2KW Hybrid Inverter
1ON PHOTON PV 5500-24|4.2KW Hybrid Inverter
Couldn't load pickup availability
Model: Photon 5500 24 Voltage: 230 VAC Weight: 12 kg Dimensions: 119 x 313.6 x 457.5 mm
1 ON Is The Future Of Solar Energy
The Photon PV5500-24 4.2KW Hybrid Inverter is a versatile and efficient solution designed for residential and small commercial solar energy systems. With a rated power output of 3.6KW and a 24V DC input, it effectively converts solar energy into usable electricity. The inverter features a wide PV input voltage range, ensuring compatibility with various solar panel configurations. Its hybrid functionality allows seamless integration with solar panels, batteries, and the grid, providing an uninterrupted power supply. Additional features include multiple protection systems, user-friendly interfaces, and real-time monitoring capabilities, making it a reliable choice for sustainable energy management.
| Category | Specification |
| MODEL | PHOTON 4.2KW |
| Rated Power | 4200VA / 4200W |
| INPUT | |
| Voltage | 230 VAC |
| Selectable Voltage Range | 170–280 VAC (For Personal Computers) 90–280 VAC (For Home Appliances) |
| Frequency Range | 50 Hz / 60 Hz (Auto sensing) |
| OUTPUT | |
| AC Voltage Regulation (Batt. Mode) | 230 VAC ±5% |
| Surge Power | 8400VA |
| Efficiency (Peak) | 90% ~ 93% |
| Transfer Time | 10 ms (For Personal Computers) 20 ms (For Home Appliances) |
| Waveform | Pure sine wave |
| No Load Power Consumption | < 70W |
| BATTERY | |
| Battery Voltage | 24 VDC |
| Floating Charge Voltage | 27 VDC |
| Overcharge Protection | 33 VDC |
| SOLAR CHARGER & AC CHARGER | |
| Solar Charger Type | MPPT |
| Max. PV Array Open Circuit Voltage | 500 VDC |
| MPP Range @ Operating Voltage | 30 ~ 450 VDC |
| Max. PV Array Power | 5500W |
| Max. Solar Charge Current | 120A |
| Max. AC Charge Current | 80A |
| Max. Charge Current | 120A |
| PHYSICAL | |
| Dimension (DxWxH) (mm) | 438 × 295 × 105 |
| Net Weight (kgs) | 8.7 |
| Communication Interface | RS232 / RS485 |
| ENVIRONMENT | |
| Humidity | 5% to 95% Relative Humidity (Non-condensing) |
| Operating Temperature | -10°C to 50°C |
| Storage Temperature | -15°C to 60°C |
