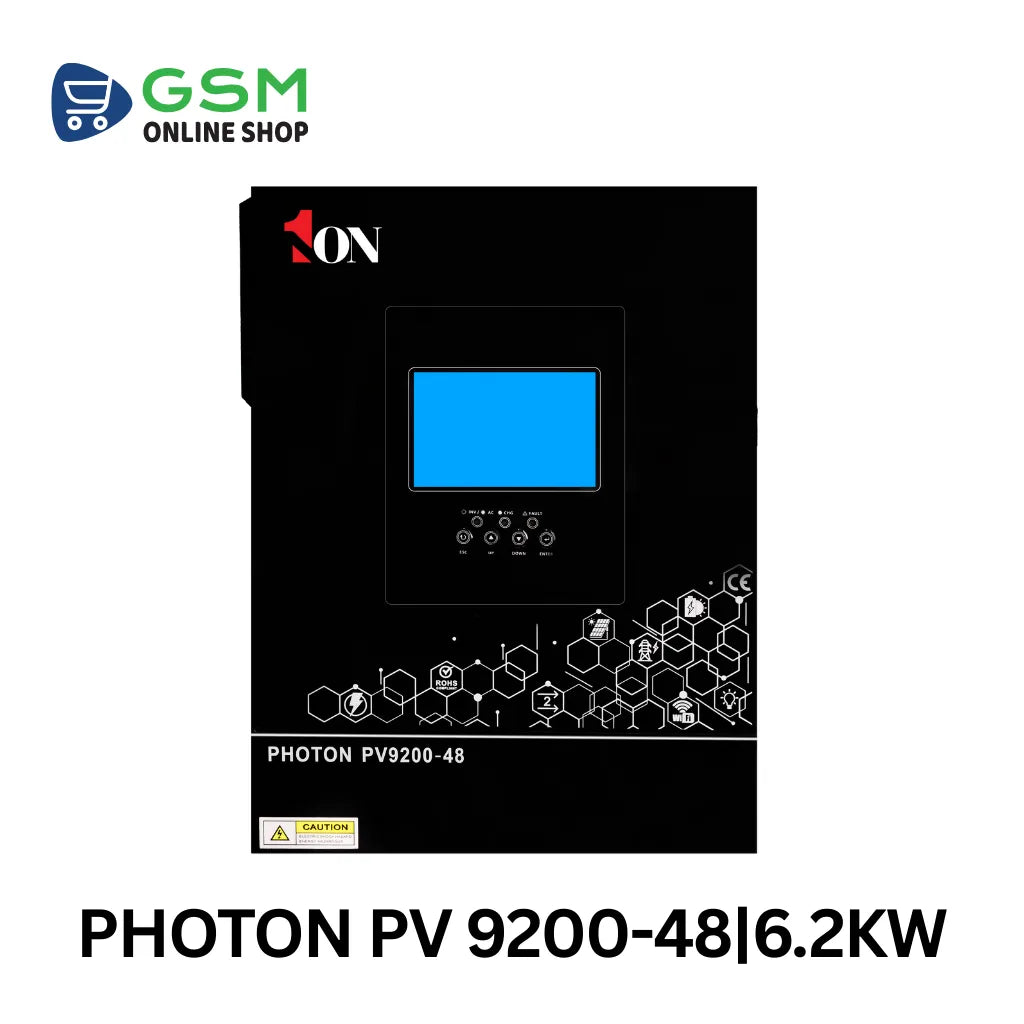

1ON PHOTON PV 9200-48|6.2KW Solar Hybrid Inverter
1ON PHOTON PV 9200-48|6.2KW Solar Hybrid Inverter
Couldn't load pickup availability
Model: Photon PV 9200 48 Voltage: 230 VAC Weight: 12 kg Dimensions: 119 x 313.6 x 457.5 mm
1 ON Is The Future Of Solar Energy
The Photon PV 9200-24 6.2KW Hybrid Inverter is a robust and efficient solution tailored for residential and small commercial solar energy systems. With a rated output power of 6.2KW and a maximum PV input of 9200W, it ensures optimal energy conversion and utilization. The inverter features a wide MPPT voltage range, allowing compatibility with various solar panel configurations. Its hybrid functionality enables seamless integration with solar panels, batteries, and the grid, providing an uninterrupted power supply. Additional features include multiple protection systems, user-friendly interfaces, and real-time monitoring capabilities, making it a reliable choice for sustainable energy management.
| Category | Specification |
| Model | PHOTON 6.2KW |
| Rated Power | 6200VA / 6200W |
| INPUT | |
| Parameter | Value |
| Voltage | 230 VAC |
| Selectable Voltage Range | 170–280 VAC (For Personal Computers) 90–280 VAC (For Home Appliances) |
| Frequency Range | 50Hz/60Hz (Auto Sensing) |
| OUTPUT | |
| Parameter | Value |
| AC Voltage Regulation (Battery Mode) | 230 VAC ±5% |
| Surge Power | 12400VA |
| Efficiency (Peak) | 90% ~ 93% |
| Transfer Time | 10ms (For Personal Computers) 20ms (For Home Appliances) |
| Waveform | Pure Sine Wave |
| No Load Power Consumption | < 70W |
| BATTERY | |
| Battery Voltage | 48 VDC |
| Floating Charge Voltage | 54 VDC |
| Overcharge Protection | 63 VDC |
| SOLAR CHARGER & AC CHARGER | |
| Solar Charger Type | MPPT |
| Max. PV Array Open Circuit Voltage | 500 VDC |
| MPP Range @ Operating Voltage | 60–450 VDC |
| Max. PV Array Power | 9200W |
| Max. Solar Charge Current | 120A |
| Max. AC Charge Current | 80A |
| Max. Charge Current | 120A |
| PHYSICAL | |
| Dimensions (D x W x H) | 450 x 300 x 130 mm |
| Net Weight | 12 kg |
| Communication Interface | RS232 / RS485 / Dry – Contact |
| ENVIRONMENT | |
| Humidity | 5% to 95% Relative Humidity (Non-condensing) |
| Operating Temperature | -10°C to 50°C |
| Storage Temperature | -15°C to 60°C |
