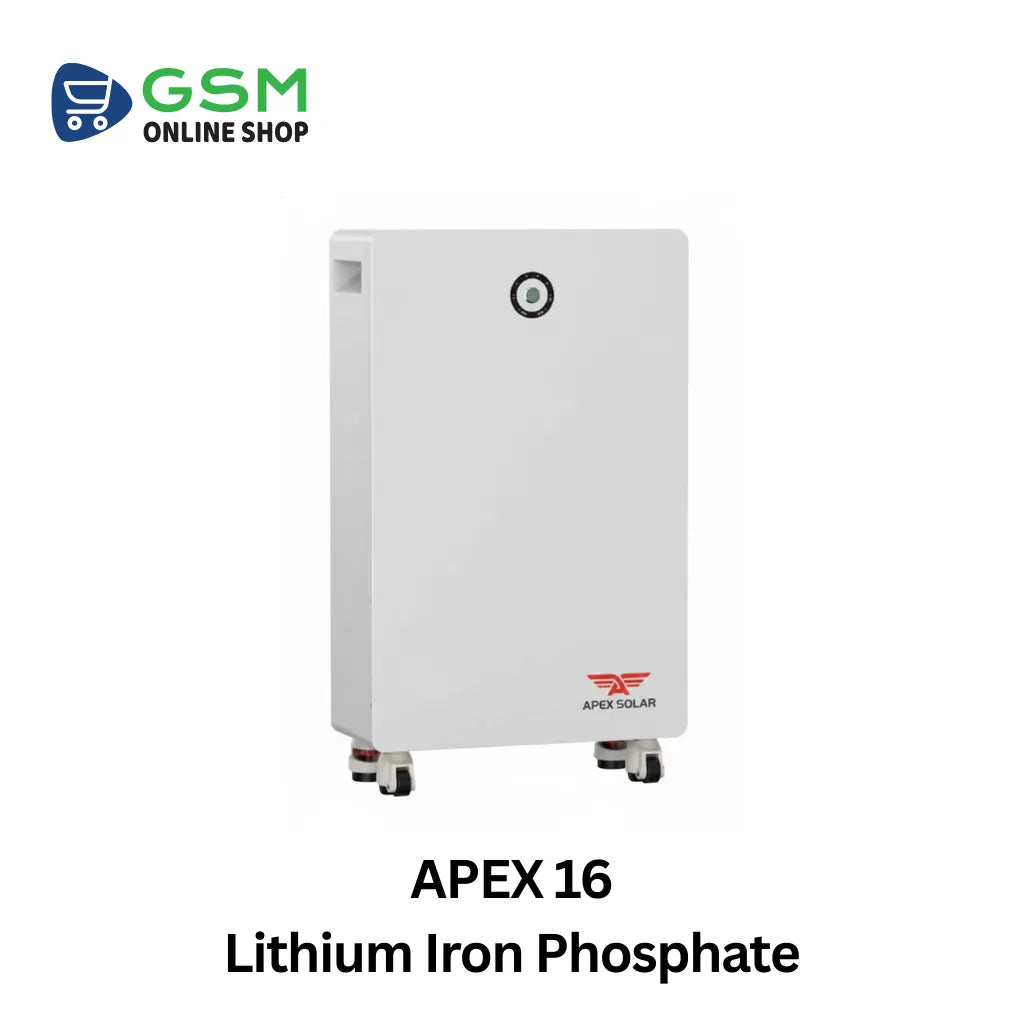

APEX 16 48V 280Ah Lithium Battery – 13.4 kWh LiFePO₄ Energy Storage
The APEX 16 48V 280Ah LiFePO₄ battery is a high-capacity lithium energy storage solution designed for solar power systems, inverters, UPS, and backup energy applications. With 13.4 kWh of battery energy, it delivers reliable power for homes, offices, and commercial installations.
Built with Lithium Iron Phosphate (LiFePO₄) cells, this 48V battery offers improved safety, long lifespan, and consistent performance. It provides up to 8000 charge cycles, reducing replacement costs and making it ideal for long-term energy storage.
The battery supports CAN, RS485, and RS232 communication, ensuring compatibility with most popular hybrid and off-grid inverters. Its high discharge capability allows it to handle heavy electrical loads efficiently. Multiple units can be connected in parallel to scale energy storage up to large solar and backup systems.
Designed for indoor floor-standing installation, the APEX 16 lithium battery complies with CE and UN38.3 standards and includes required connection cables for easy setup.
Applications
-
Solar energy storage systems
-
Hybrid and off-grid inverters
-
UPS and backup power solutions
-
Residential and commercial energy storage
Why Choose APEX 16?
-
48V 280Ah lithium battery for solar systems
-
13.4 kWh high-capacity energy storage
-
Long life LiFePO₄ technology
-
High power output for heavy loads
-
Expandable up to 63 batteries in parallel
Product Overview
| Field | Value |
|---|---|
| Model | APEX 16 |
Performance
| Parameter | Value |
|---|---|
| Nominal Voltage | 48 Vdc |
| Nominal Capacity | 280 Ah |
| Battery Energy | 13.4 kWh |
| Charge Current | 150 A |
| Charge Power | 7.2 kW |
| Discharge Current | 200 A |
| Discharge Power | 9.6 kW |
| Short Circuit Current | 540 A |
Communication
| Parameter | Value |
|---|---|
| Display | LED indicator |
| Communication | CAN, RS485, RS232 |
General Specification
| Parameter | Value |
|---|---|
| Dimension (W×D×H mm) | 780 × 500 × 230 mm |
| Weight | 120 kg |
| Installation | Floor Stand |
| Operating Temperature | Charge: 0–55°C / Discharge: −20°C ~ 55°C |
| Operating / Storage Humidity | ≤95% RH |
| Max Operating Altitude | ≤2000 m |
| IP Rating | IP20 |
| Cell Technology | LiFePO₄ (Lithium Iron Phosphate) |
| Cycle Life | 8000 cycles @ 80% DoD / 25°C / 0.5C, 60% EOL |
| Scalability | Max 63 batteries in parallel |
Standard Compliance
| Parameter | Value |
|---|---|
| Certificates | CE, UN38.3 |
Ordering & Deliverables
| Parameter | Value |
|---|---|
| Product Ordering Part | APEX 16 Battery (Cable included) |
